- Product Description
-

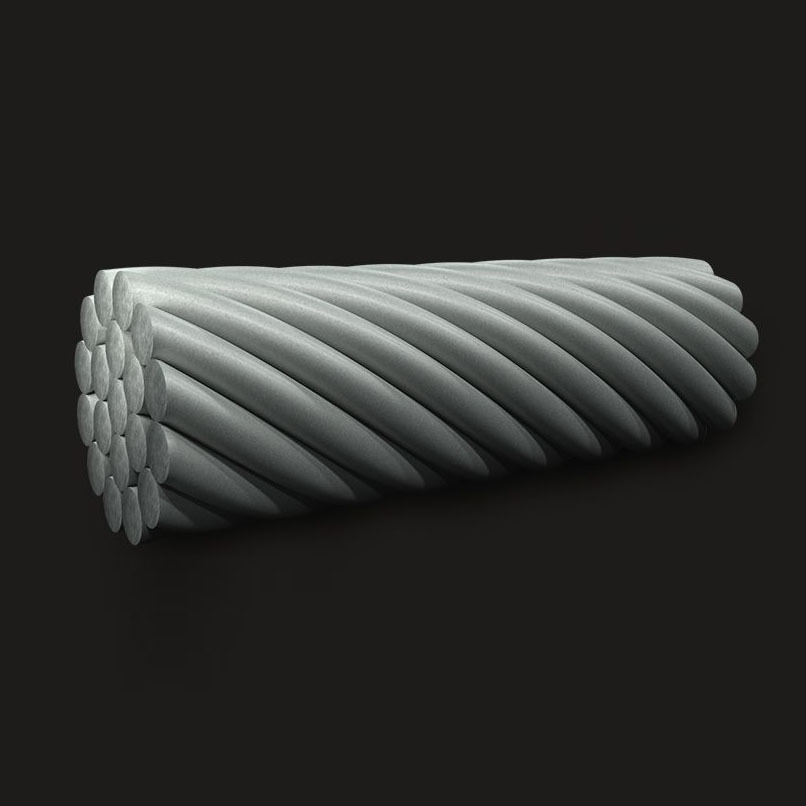

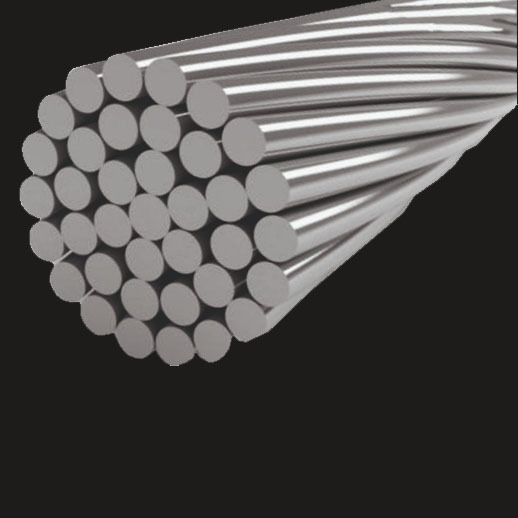

1x37 (18/12/6/1) - Steel Wire Rope
1x37 galvanised steel spiral strand is a very popular construction, mainly used in the leisure sector for zip lines. 1x37’s excellent breaking load capacity along with its smooth surface increases both speed and smoothness when used in a zip line application.
Applications
● Zip Lines
● Large-scale Field Structure Parts
● Suspension Cables
● Guy WiresBreaking Loads Nominal Diameter Approximate Mass Minimum Breaking Loads 1770 Mpa [mm] [kg/m] [kN] [Kg] 4 0.071 13.50 1.377 4.5 0.099 18.85 1.923 5 0.114 21.86 2.230 5.5 0.149 28.54 2.912 6 0.169 32.23 3.288 6.5 0.189 36.15 3.688 7 0.283 44.61 4.551 8 0.309 59.00 6.018 9 0.395 75.40 7.691 10 0.458 87.44 8.919 11 0.561 107.18 10.933 12 0.675 128.94 13.152 13 0.799 152.69 15.575 14 0.934 178.46 18.203 15 1.030 196.75 20.069 16 1.235 236.00 24.073 18 1.518 290.10 29.591 20 1.896 362.38 36.963 22 2.317 442.69 45.155 24 2.699 515.75 52.607 26 3.196 610.78 62.300 28 3.757 713.84 72.812 29 4.021 768.38 78.375 30 4.317 824.93 84.143
