- Product Description
-
Structure name: 35W*7
35: There are 35 round strands in the wire rope,
7:1*7 structure per share, that is, a layer of steel wire laid outside the center wire.
Diameter range: 12mm-50mm
Class 35w*7 wire rope is a multi-layer strand non-rotating steel rope, and many users call it a non-circling wire rope or a non-laying wire rope. The twist direction of each layer of the wire rope is different to ensure that the rotational force of the wire rope is roughly equal in both directions of clockwise and counterclockwise, so that the rotational force of the wire rope is cancelled out under the stress state. This kind of wire rope belongs to the line contact wire rope, the density is large, the breaking tension is also large, its specific gravity is 15% higher than the diameter of 6*19,6*37, the breaking end force is about 10% higher, (6*19 and 6*37 ordinary steel core rope weight coefficient is 0.4, and the coefficient of 35w*7 is 0.46, the weight coefficient of 6*37 is 0.46, and the weight coefficient of 35 W *7 is 0.46. The tension coefficient of the ordinary rope is 0.332 and 0.319, while the tension coefficient of the 35w*7 type steel wire rope is 0.36), this kind of non-rotating steel wire rope has a uniform and smooth appearance, and the wear resistance is higher than that of the general 6-strand rope, so the service life of the non-rotating rope is higher than that of the 6-strand rope.
Non-rotating rope is mainly used for higher tower cranes {tower cranes, tower cranes}Non-rotating wire ropes (category 1).
Multilayer wire rope used in applications that require great rotation resistance.

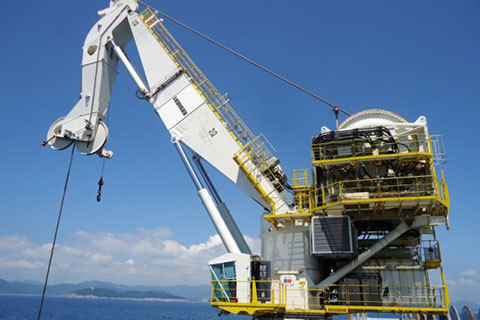

Their multiple uses include: Oil platform cranes, tower cranes, telescopic mobile cranes, etc.
Suitable for working with suspending loads at great heights.
Suitable for working with swivels.公称直径
Nominal diameter
mm参考重量
Approximate
weight公称抗拉强度 Nominal tensile strength, MPa 1770 1960 2160 最小破断拉力 Min. breaking load kg/100 m kN 8 31.8 46.1 51.1 54.6 9 40.3 58.4 64.6 69.1 10 49.7 72.0 79.8 85.3 12 71.6 104 115 123 14 97.4 141 156 167 16 127 184 204 218 18 161 233 258 276 20 199 288 319 341 22 241 349 386 413 24 286 415 459 491 26 336 487 539 577 28 390 565 625 669 30 447 648 718 768 32 509 738 817 874 34 575 833 922 986 36 644 934 1030 1110 38 718 1040 1150 1230 40 795 1150 1280 1370 42 877 1270 1410 1510 44 962 1390 1540 1650
