- Product Description
-

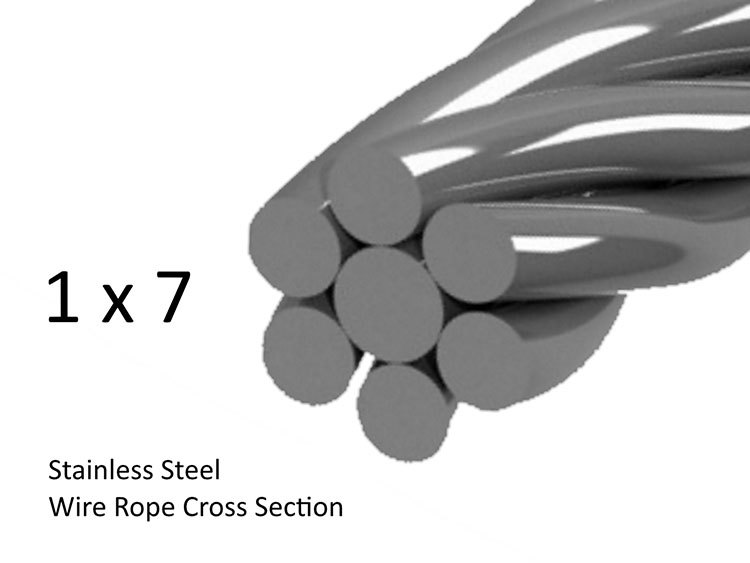

1×7 wire rope is a wire rope composed of one outer wire and seven inner wires. It is usually suitable for smaller lifting equipment, such as hand hoist, hand lifter, etc. The specification range of 1×7 wire rope is generally 0. 3-2. 0 mm, can be galvanized Galvanized, SS304 or SS316. This type of wire rope is manufactured using specific equipment and strict quality control is applied to ensure its performance. The application fields of 1×7 wire rope include control lines inside the vehicle, such as brake , gear , window , rear view mirror , fuel pedal, etc. It is also used in the braking system of sports bicycles and in the command and control system of mechanical and electronic driving equipment.(0.9mm-2.5mm),Accept customization.
Specifications
Galvanized Steel Wire Rope Steel Cable 1×7,7×7,7×19,7×37 rope
Dia: 0.15- 50mmApplication
construction,the cargo rope,motor vehicle,motorcycle,bicycle,washing machine,precision instrument and fishery, etc.公称直径
Nominal diameter伸长率Elongatior 绳最小破断拉力
Min.B/L参考重量
Approximate
weight弹性Elastic 永久Permanent mm 不大于，%Not exceed kN kg/100 m 0.9 0.8 0.2 0.90 0.41 1.0 1.03 0.50 1.2 1.52 0.74 1.4 2.08 1.01 1.5 2.25 1.15 1.6 2.77 1.42 1.8 3.19 1.63 2.0 4.02 2.05
